Oxygen Concentrator
PSA oxygen concentrator for medical oxygen therapy, 0.5-5 LPM and 8/10 LPM platforms, 93% +/- 3% purity – OEM/ODM manufacturer and wholesale supplier

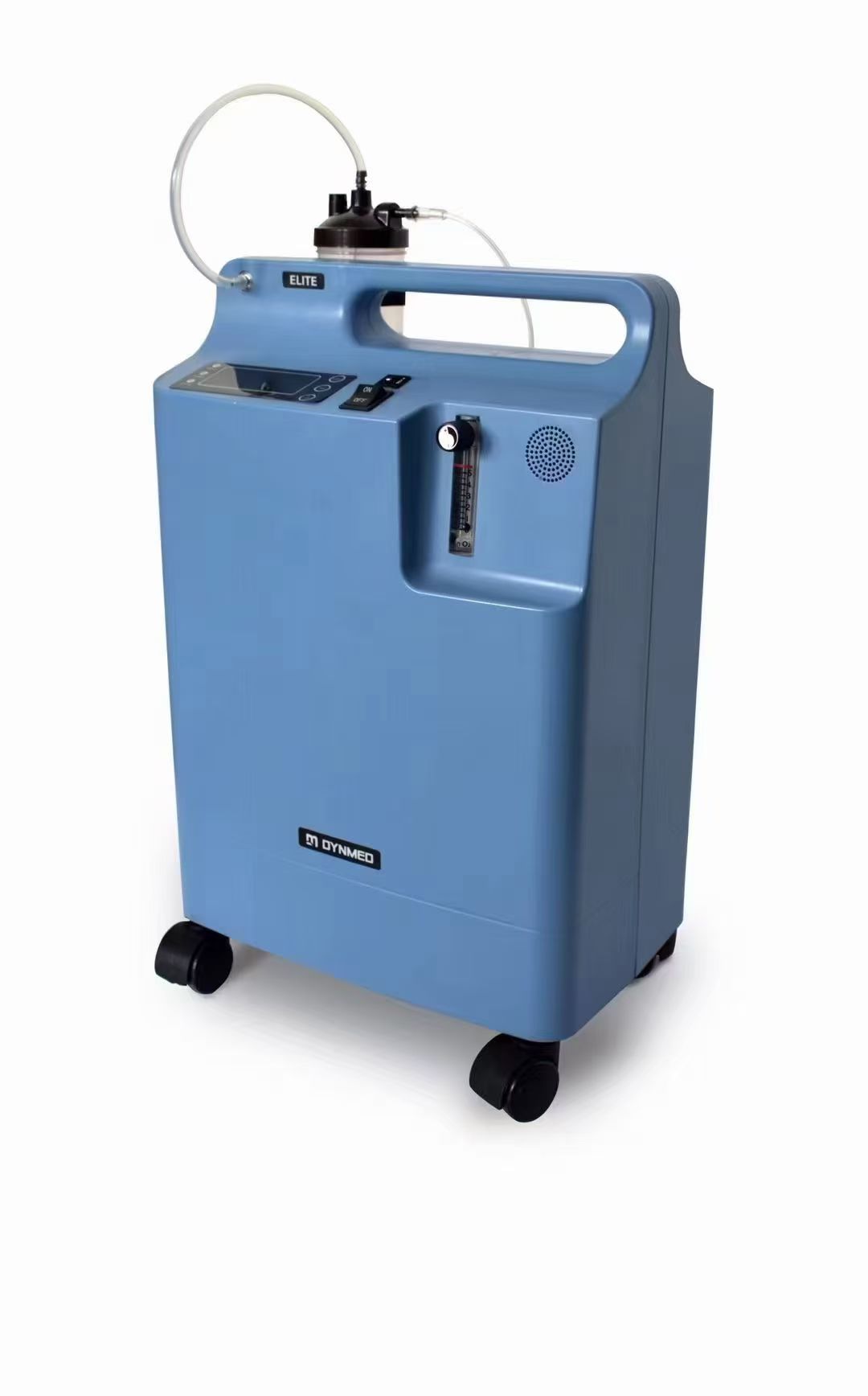

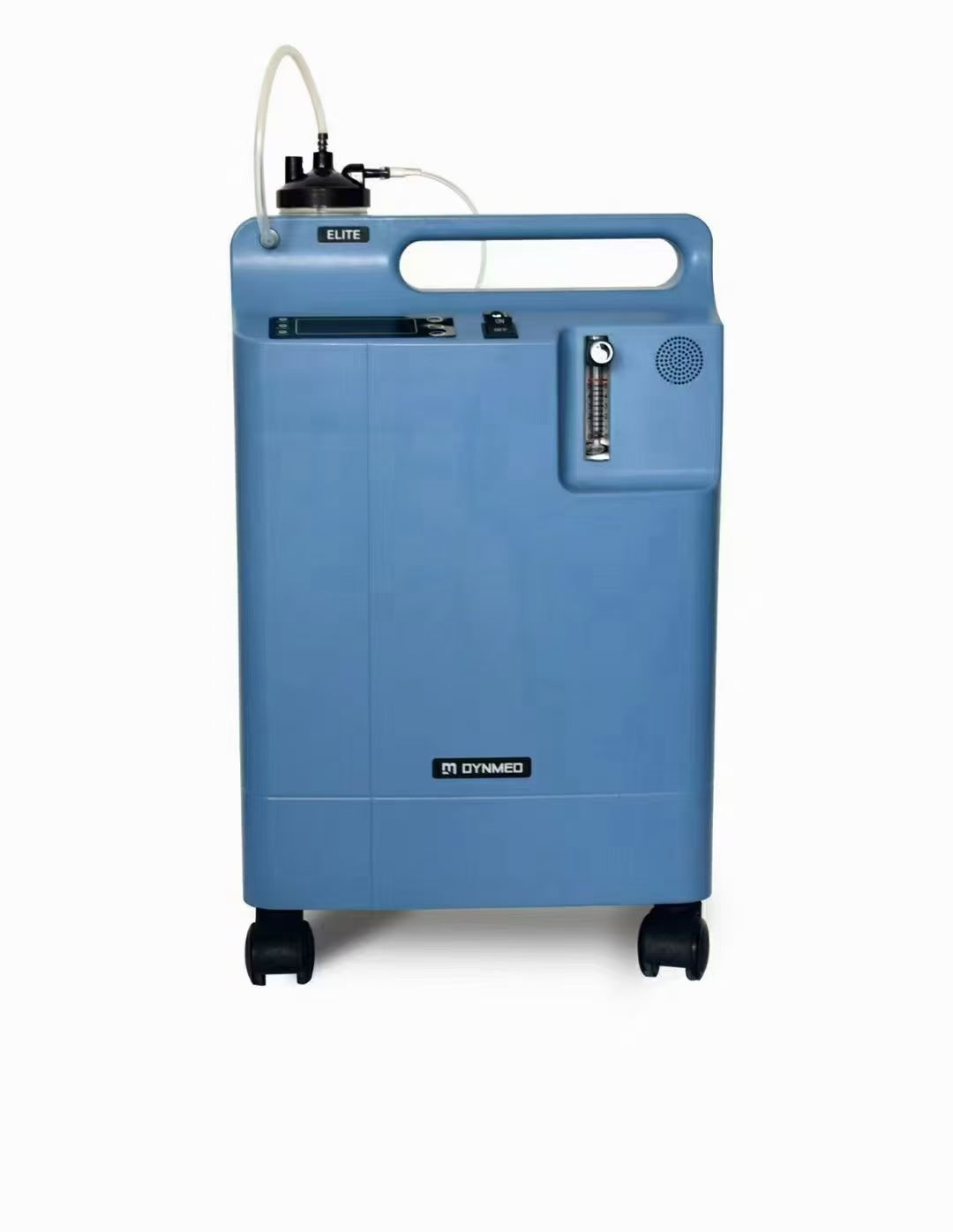

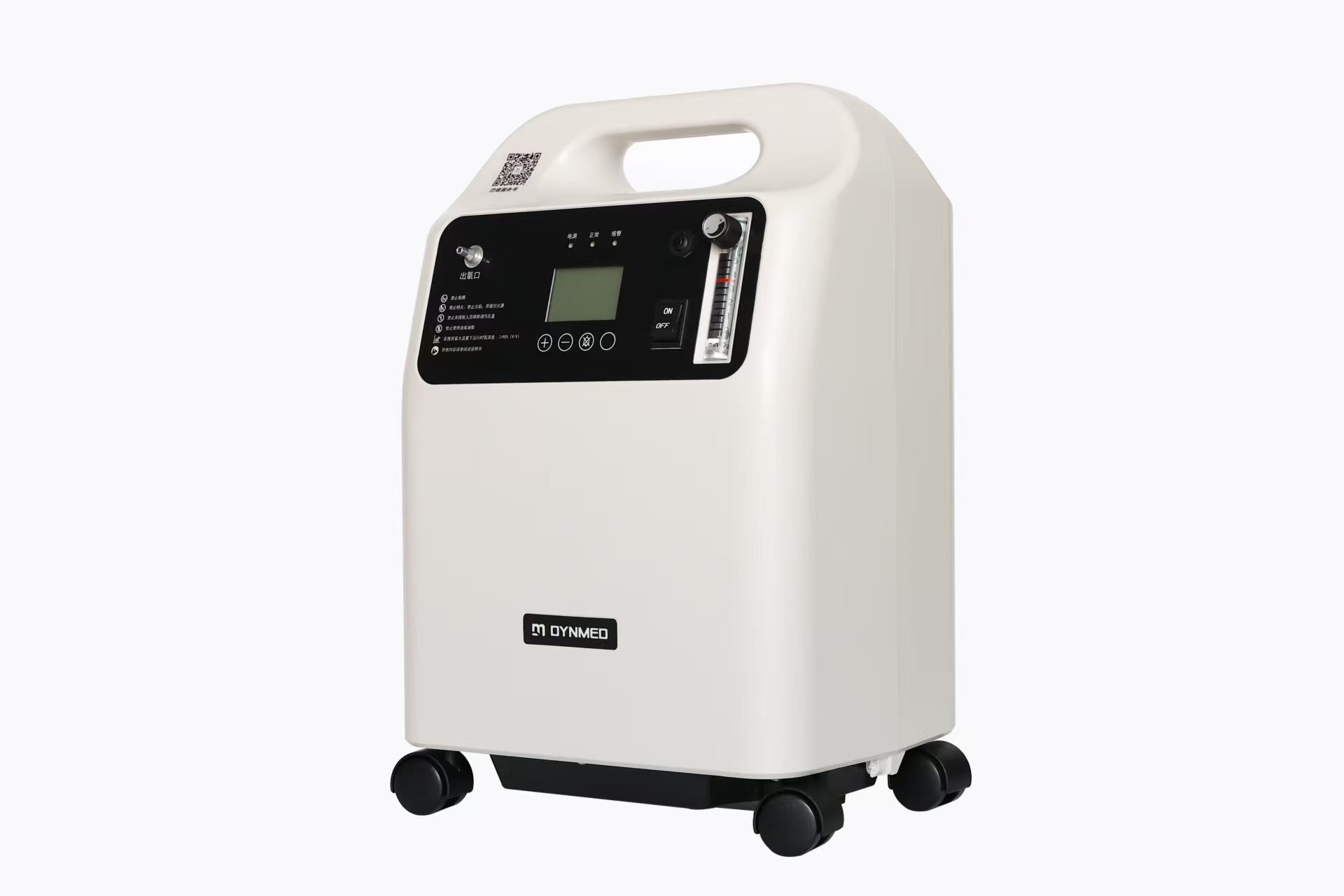

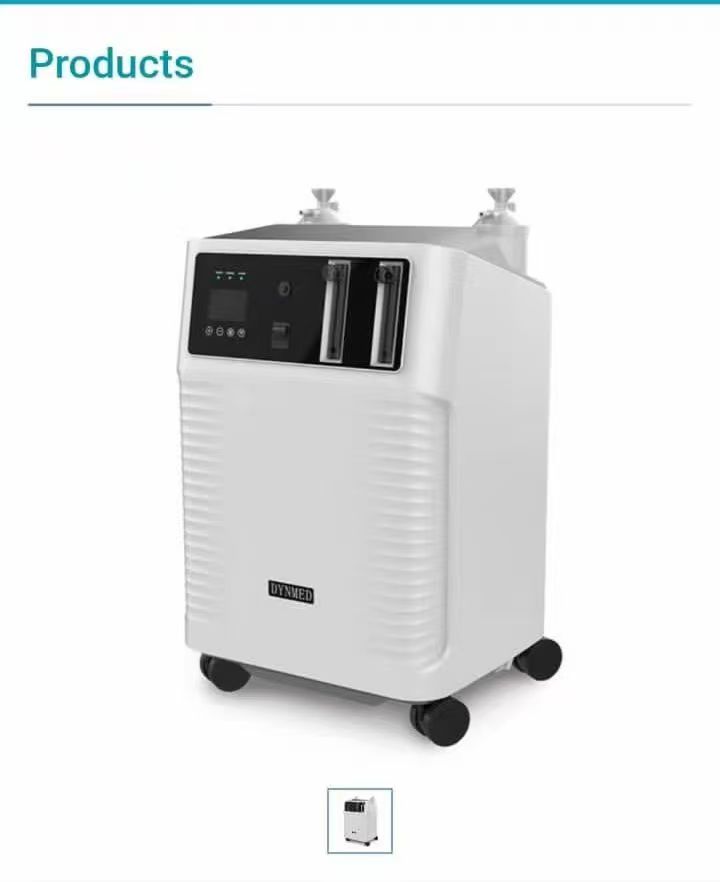

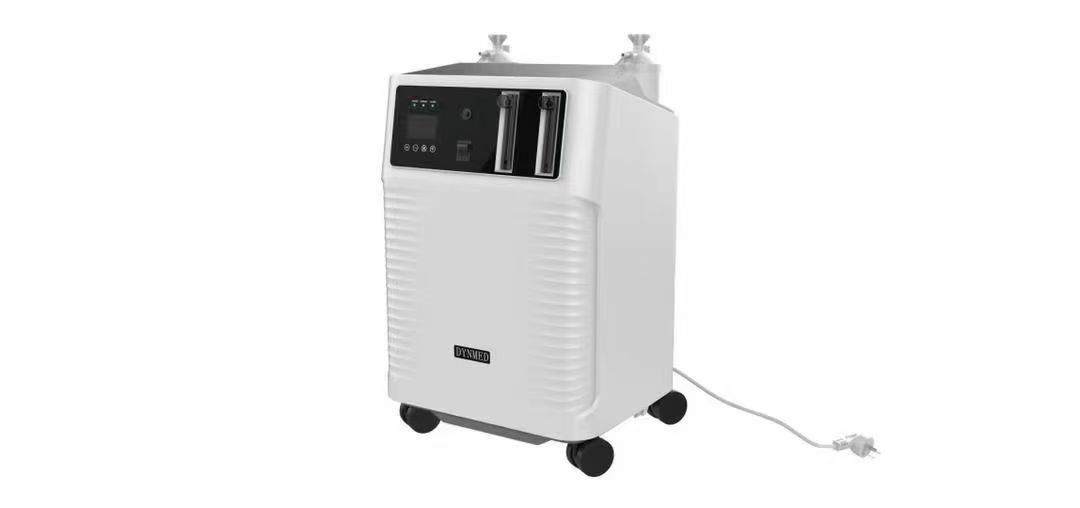

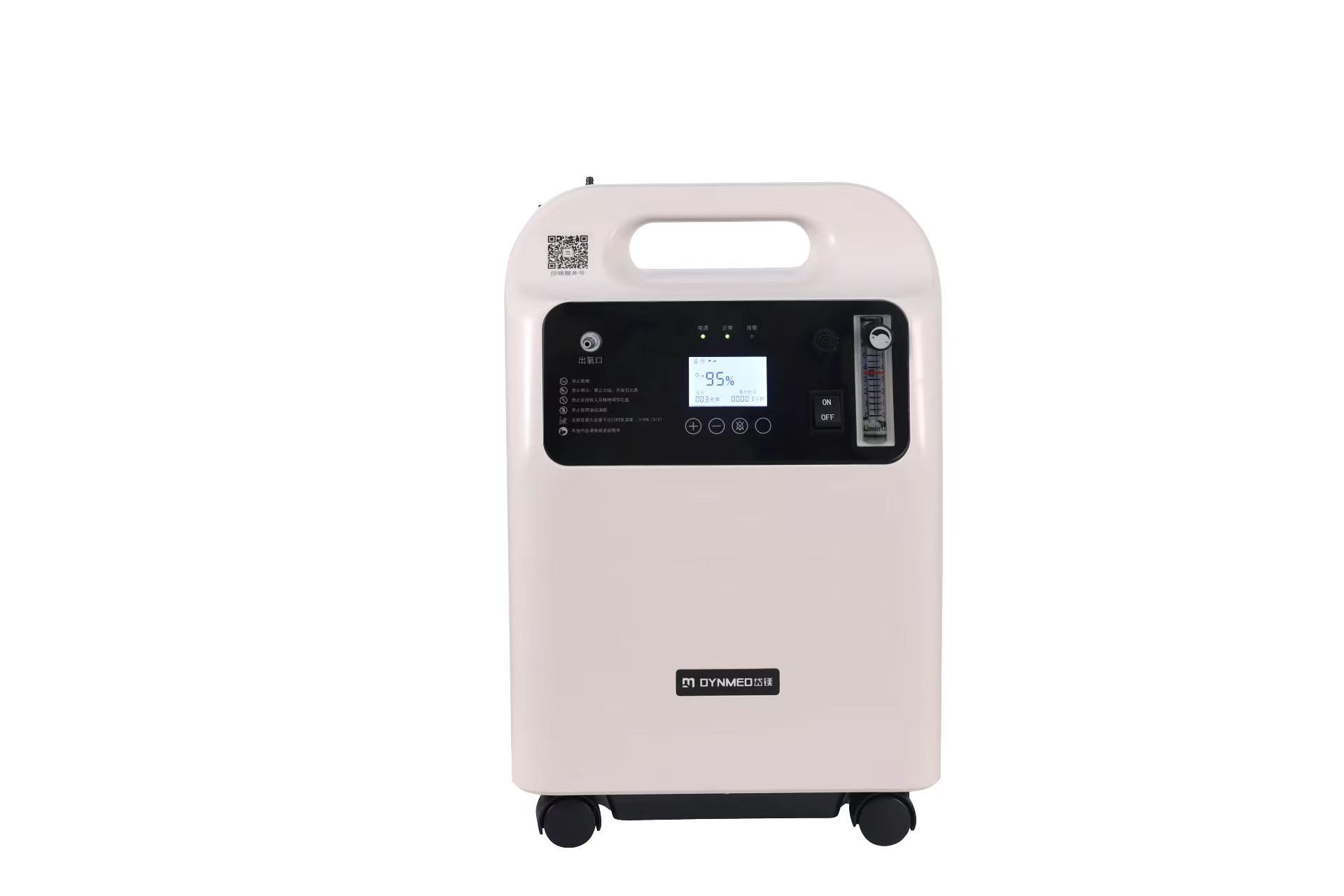

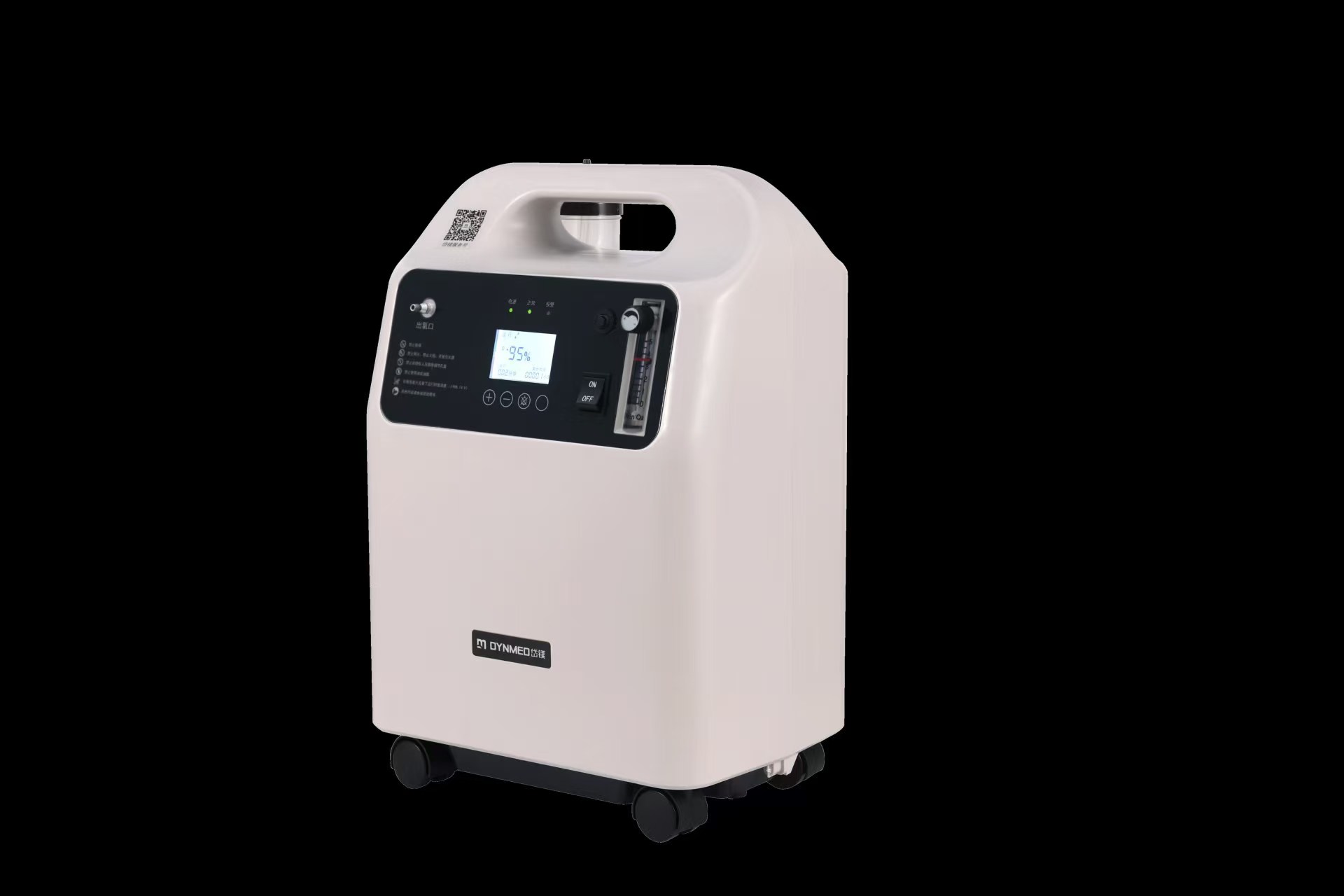

PSA (pressure-swing adsorption) oxygen concentrator for medical oxygen therapy, available in 5L and PLUS Series 8L / 10L platforms, designed for home, clinic, and oxygen-bar applications, and available for OEM/ODM and private-label supply.

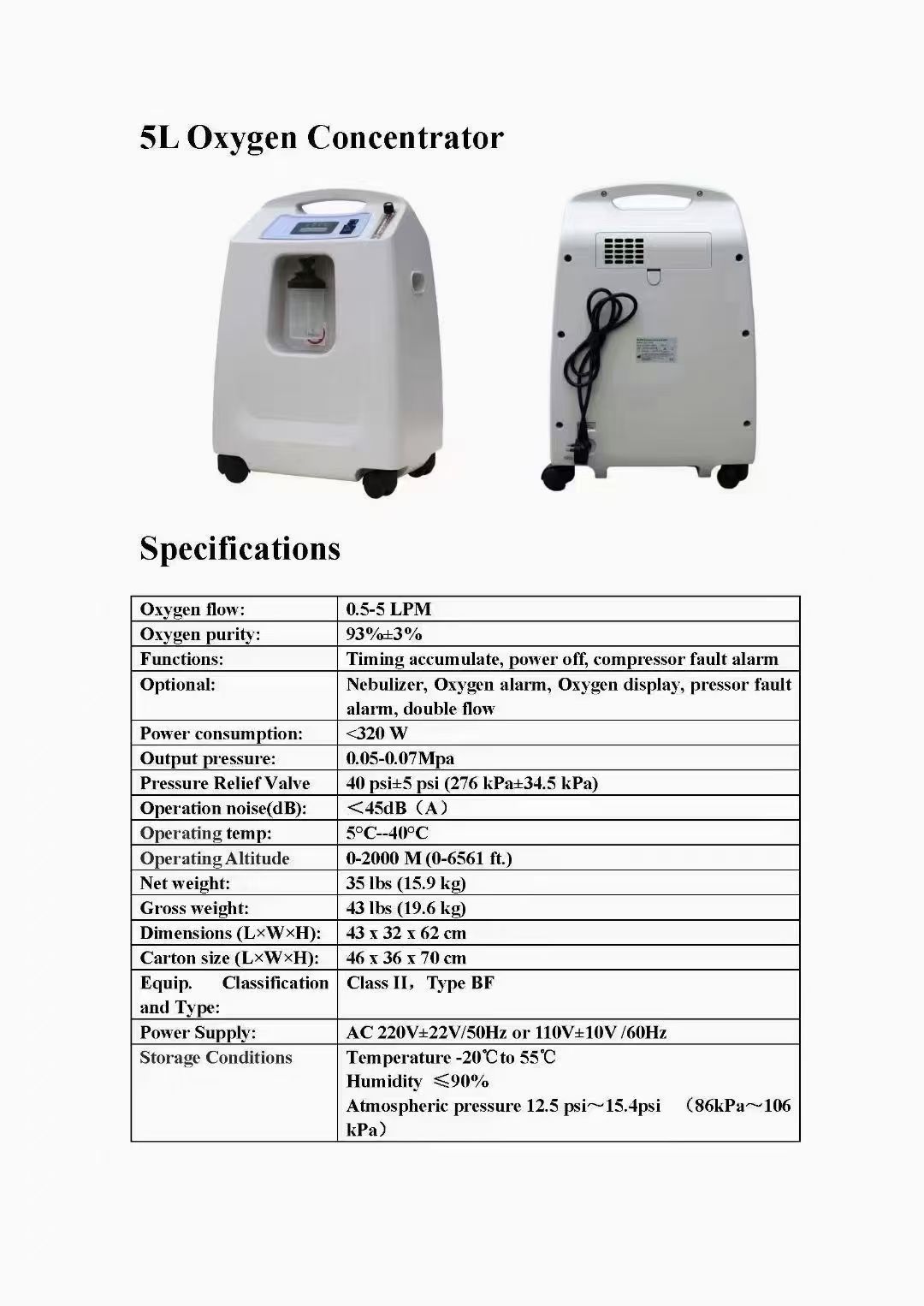

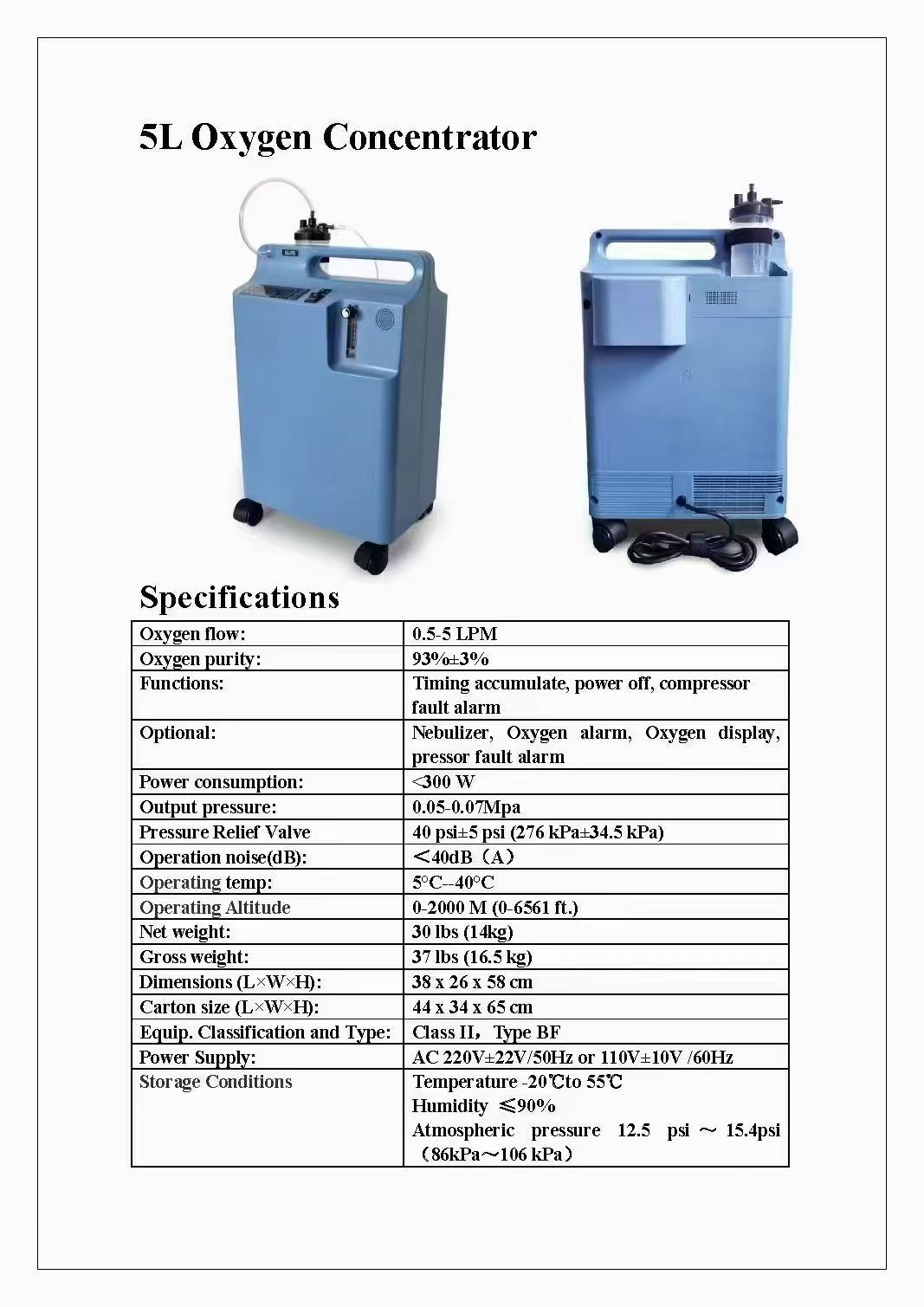

- Output flow 0.5 to 5 LPM (5L) or 0.5 to 8 / 0.5 to 10 LPM (PLUS Series)
- Output purity 93% +/- 3% oxygen concentration, per USP / EP Oxygen 93% pharmacopoeial monographs

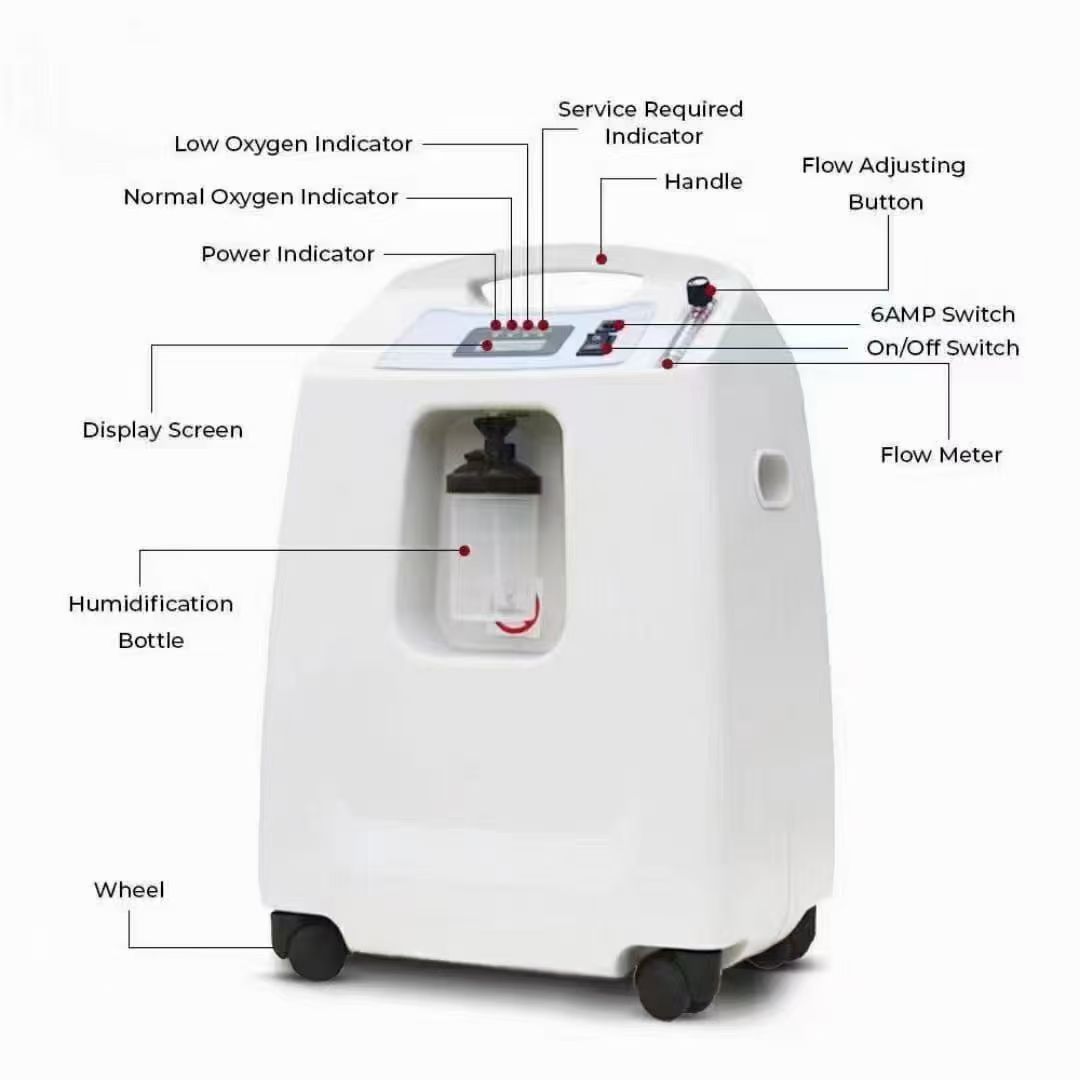

- Low-purity, high/low-pressure, compressor-failure and power-failure alarms (audible and visual)

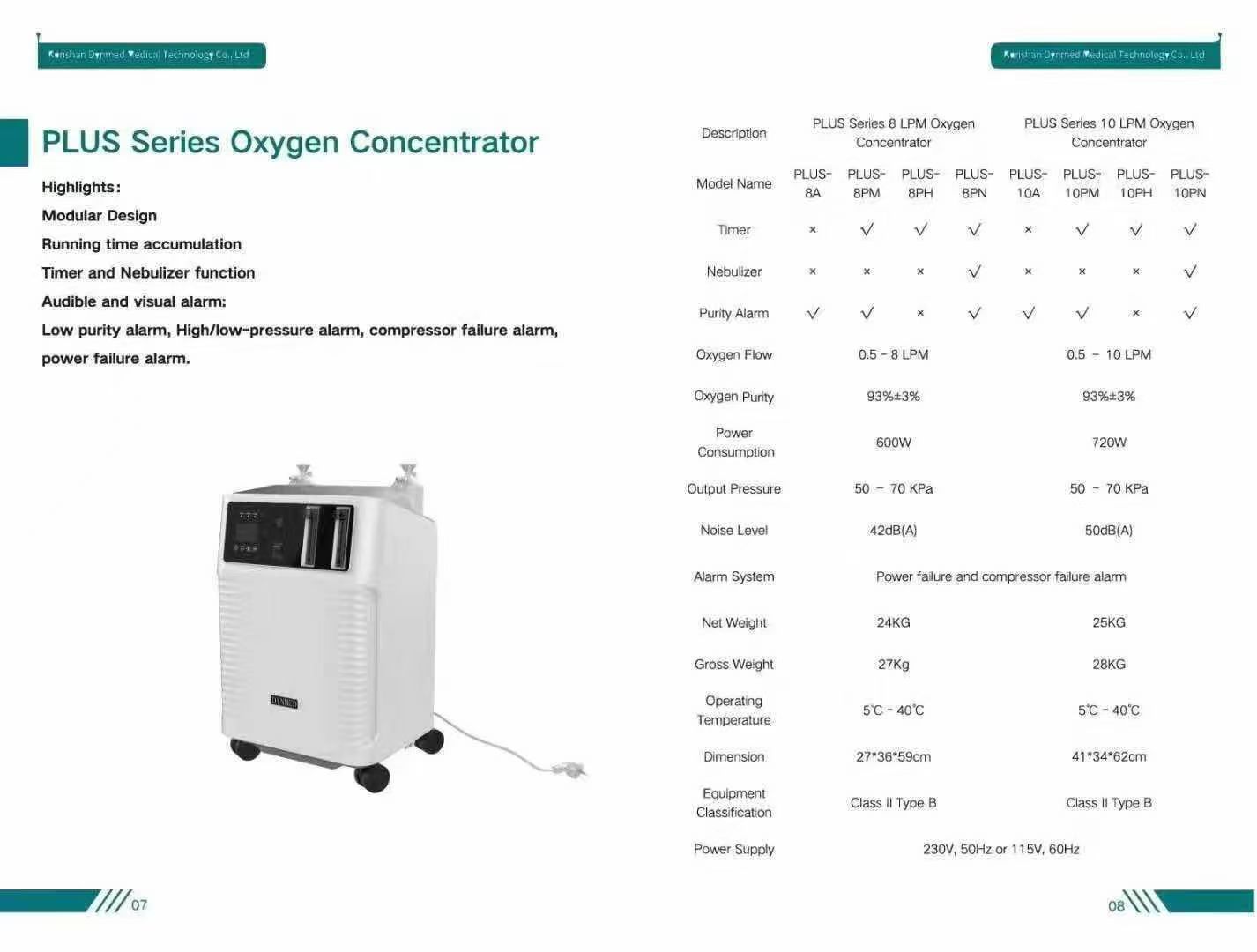

- Optional nebulizer, oxygen-concentration alarm, oxygen display, double-flow outlet on the PLUS Series

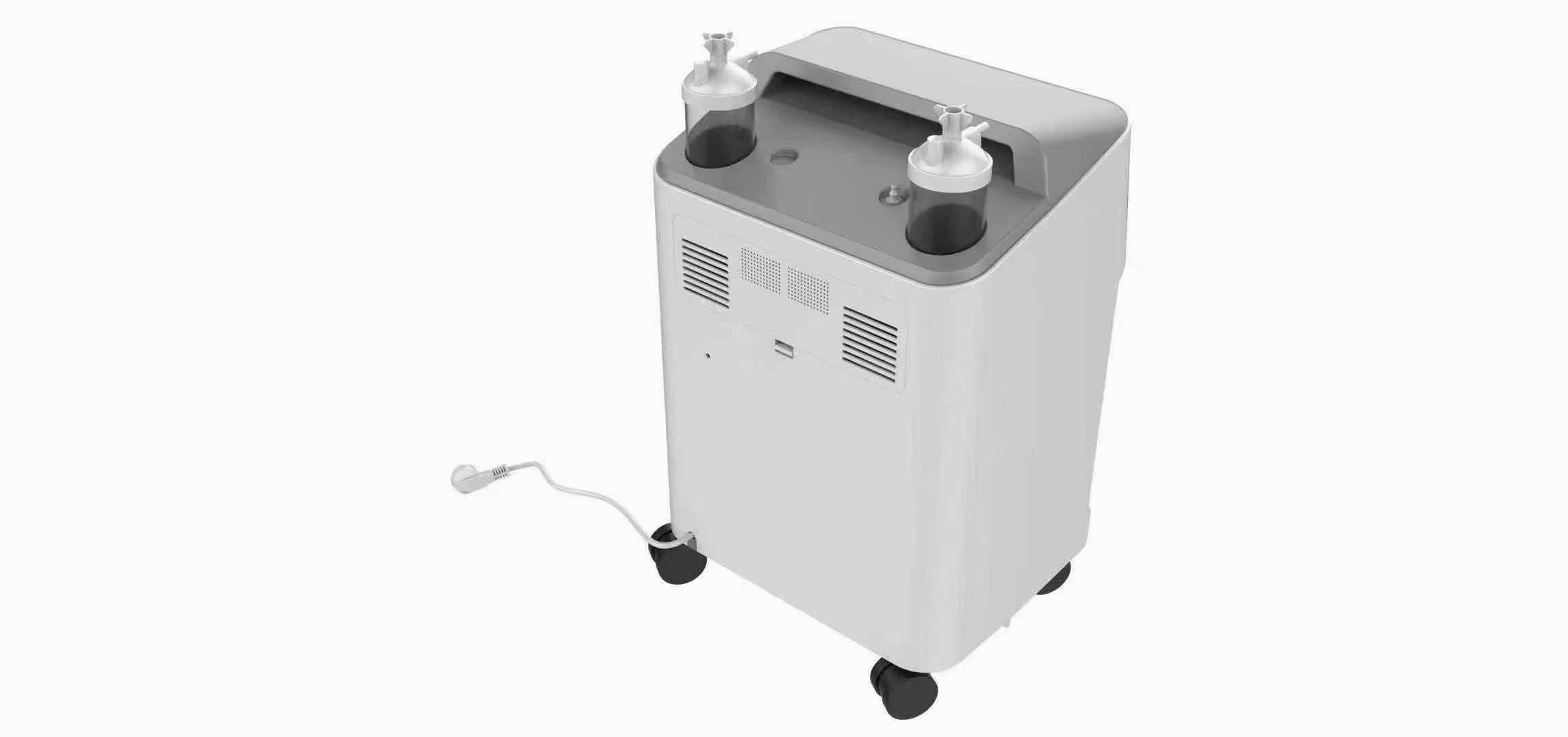

- Built-in humidifier bottle port for patient comfort during long sessions
- Class II, Type BF (5L) / Class II, Type B (PLUS Series) per IEC 60601-1

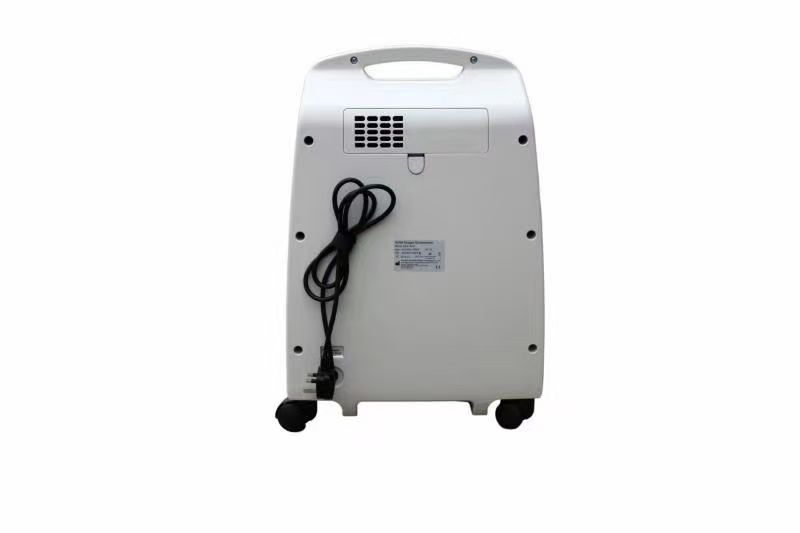

- AC 220V +/- 22V at 50Hz or 110V +/- 10V at 60Hz; PLUS Series also 230V/50Hz or 115V/60Hz
- Operating temperature 5-40 degC; operating altitude 0-2000 m (0-6561 ft) on the 5L platform
- Bulk supply with custom branding, packaging, language IFU, accessory bundle, and country-specific power cord
Output performance, alarm thresholds, sieve-bed lifetime, altitude derating, and the destination-market approvals depend on the exact model and should be confirmed against its test report (per ISO 80601-2-69 and the destination market’s pathway – EU MDR Class IIa, US FDA 21 CFR 868.5440, UKCA, Health Canada, TGA) and the labelling. Contact us for model specifications, test documentation, samples, and a quotation.
